颜值高的Nginx 日志查看分析的解决方案

最近客户有个新需求,就是想查看网站的访问情况,由于网站没有做 google 的统计和百度的统计,所以访问情况,只能通过[日志查看],通过脚本的形式给客户导出也不太实际,给客户写个简单的页面,咱也做不到

成熟的日志解决方案,那就是[ELK],还有现在比较火的 Loki,(当然还有很多其他解决方案,比如 Splunk、Datadog 等),那我们这个小网站,小体量,必然是选择 Loki 来做

所以这次就采用`Nginx+Promtail+Loki+Grafana`来做一个简单的 Nginx 日志展示

颜值高的 Nginx 日志查看分析的解决方案

Nginx 的安装不多说,Promtail 和[Loki]都选用二进制的方式进行安装,直接下载对应版本的二进制文件,解压后指定配置文件启动即可

其中 promtail 配置文件如下配置:



server:
  http_listen_port: 9080
  grpc_listen_port: 0

positions:
  filename: /tmp/positions.yaml

clients:
  - url: http://localhost:3100/loki/api/v1/push

scrape_configs:
- job_name: nginx
  pipeline_stages:
  - replace:
      expression: '(?:[0-9]{1,3}\.){3}([0-9]{1,3})'
      replace: '***'
  static_configs:
  - targets:
      - localhost
    labels:
      job: nginx_access_log
      host: expatsxxxxs
      agent: promtail
      __path__: /var/log/nginx/expatshxxxxs.access.log



日志收集工作完成后,在 Nginx 中,需要修改日志格式,修改 Nginx 的日志格式为 Json 格式,配置如下:

log_format json_analytics escape=json '{'
  '"msec": "$msec", ' # request unixtime in seconds with a milliseconds resolution
  '"connection": "$connection", ' # connection serial number
  '"connection_requests": "$connection_requests", ' # number of requests made in connection
  '"pid": "$pid", ' # process pid
  '"request_id": "$request_id", ' # the unique request id
  '"request_length": "$request_length", ' # request length (including headers and body)
  '"remote_addr": "$remote_addr", ' # client IP
  '"remote_user": "$remote_user", ' # client HTTP username
  '"remote_port": "$remote_port", ' # client port
  '"time_local": "$time_local", '
  '"time_iso8601": "$time_iso8601", ' # local time in the ISO 8601 standard format
  '"request": "$request", ' # full path no arguments if the request
  '"request_uri": "$request_uri", ' # full path and arguments if the request
  '"args": "$args", ' # args
  '"status": "$status", ' # response status code
  '"body_bytes_sent": "$body_bytes_sent", ' # the number of body bytes exclude headers sent to a client
  '"bytes_sent": "$bytes_sent", ' # the number of bytes sent to a client
  '"http_referer": "$http_referer", ' # HTTP referer
  '"http_user_agent": "$http_user_agent", ' # user agent
  '"http_x_forwarded_for": "$http_x_forwarded_for", ' # http_x_forwarded_for
  '"http_host": "$http_host", ' # the request Host: header
  '"server_name": "$server_name", ' # the name of the vhost serving the request
  '"request_time": "$request_time", ' # request processing time in seconds with msec resolution
  '"upstream": "$upstream_addr", ' # upstream backend server for proxied requests
  '"upstream_connect_time": "$upstream_connect_time", ' # upstream handshake time incl. TLS
  '"upstream_header_time": "$upstream_header_time", ' # time spent receiving upstream headers
  '"upstream_response_time": "$upstream_response_time", ' # time spend receiving upstream body
  '"upstream_response_length": "$upstream_response_length", ' # upstream response length
  '"upstream_cache_status": "$upstream_cache_status", ' # cache HIT/MISS where applicable
  '"ssl_protocol": "$ssl_protocol", ' # TLS protocol
  '"ssl_cipher": "$ssl_cipher", ' # TLS cipher
  '"scheme": "$scheme", ' # http or https
  '"request_method": "$request_method", ' # request method
  '"server_protocol": "$server_protocol", ' # request protocol, like HTTP/1.1 or HTTP/2.0
  '"pipe": "$pipe", ' # "p" if request was pipelined, "." otherwise
  '"gzip_ratio": "$gzip_ratio", '
  '"http_cf_ray": "$http_cf_ray",'
  '"geoip_country_code": "$geoip_country_code"'
  '}';



配置文件中,需要注意的是 geoip 的配置,需要在 nginx 中添加 geoip 模块

首先通过 yum 安装 geoip 及 lib 库

yum -y install GeoIP GeoIP-data GeoIP-devel



之后,重新编译 Nginx,通过`–with-http_geoip_module`添加 nginx 的 geoip 模块

编译完成后,在 objs 目录下生成新的 Nginx 可执行文件,替换原先的,通过`kill -USR2`信号,升级 Nginx

此时配置的`log_format`不会再报错 geoip 指令找不到,配置完成后,配置网站的 access 日志,引用刚才配置的 json 格式的`log_format`

查看此时的日志格式

{"msec": "1633430998.322", "connection": "4", "connection_requests": "1", "pid": "29887", "request_id": "40770fec38c2e5a68714df5f7a67283d", "request_length": "392", "remote_addr": "106.19.96.55", "remote_user": "", "remote_port": "43746", "time_local": "05/Oct/2021:18:49:58 +0800", "time_iso8601": "2021-10-05T18:49:58+08:00", "request": "GET / HTTP/2.0", "request_uri": "/", "args": "", "status": "200", "body_bytes_sent": "60949", "bytes_sent": "61222", "http_referer": "https://cn.bing.com/search?q=expat+tourism+agent+in+china&go=Search&qs=n&form=QBRE&sp=-1&pq=expat+tourism+agent+in+chi&sc=0-26&sk=&cvid=8BD2D4B79B3A4FA682571CB5BC7334D4", "http_user_agent": "Mozilla/5.0 (iPhone; CPU iPhone OS 13_6 like Mac OS X) AppleWebKit/605.1.15 (KHTML, like Gecko) Version/13.1.2 Mobile/15E148 Safari/604.1", "http_x_forwarded_for": "", "http_host": "www.expatsholidays.com", "server_name": "www.expatsholidays.com", "request_time": "0.003", "upstream": "127.0.0.1:9000", "upstream_connect_time": "0.000", "upstream_header_time": "0.002", "upstream_response_time": "0.002", "upstream_response_length": "60991", "upstream_cache_status": "", "ssl_protocol": "TLSv1.2", "ssl_cipher": "ECDHE-RSA-AES128-GCM-SHA256", "scheme": "https", "request_method": "GET", "server_protocol": "HTTP/2.0", "pipe": ".", "gzip_ratio": "", "http_cf_ray": "","geoip_country_code": ""}
{"msec": "1633430998.709", "connection": "4", "connection_requests": "2", "pid": "29887", "request_id": "430fd53a457ea580c47e9b055da2b4d0", "request_length": "56", "remote_addr": "106.19.96.55", "remote_user": "", "remote_port": "43746", "time_local": "05/Oct/2021:18:49:58 +0800", "time_iso8601": "2021-10-05T18:49:58+08:00", "request": "GET /maps/api/js?ver=5.6.1 HTTP/2.0", "request_uri": "/maps/api/js?ver=5.6.1", "args": "ver=5.6.1", "status": "200", "body_bytes_sent": "41262", "bytes_sent": "41406", "http_referer": "https://www.expatsholidays.com/", "http_user_agent": "Mozilla/5.0 (iPhone; CPU iPhone OS 13_6 like Mac OS X) AppleWebKit/605.1.15 (KHTML, like Gecko) Version/13.1.2 Mobile/15E148 Safari/604.1", "http_x_forwarded_for": "", "http_host": "www.expatsholidays.com", "server_name": "www.expatsholidays.com", "request_time": "0.000", "upstream": "", "upstream_connect_time": "", "upstream_header_time": "", "upstream_response_time": "", "upstream_response_length": "", "upstream_cache_status": "", "ssl_protocol": "TLSv1.2", "ssl_cipher": "ECDHE-RSA-AES128-GCM-SHA256", "scheme": "https", "request_method": "GET", "server_protocol": "HTTP/2.0", "pipe": ".", "gzip_ratio": "3.06", "http_cf_ray": "","geoip_country_code": ""}



已经转为 JSON 格式,接着安装 grafana,最快捷的方式,通过 docker 直接起一个

docker run -d -p 3000:3000 grafana/grafana



启动后,通过 admin/admin 默认用户名密码登录,登陆后提示重置密码,之后进入 grafana 界面

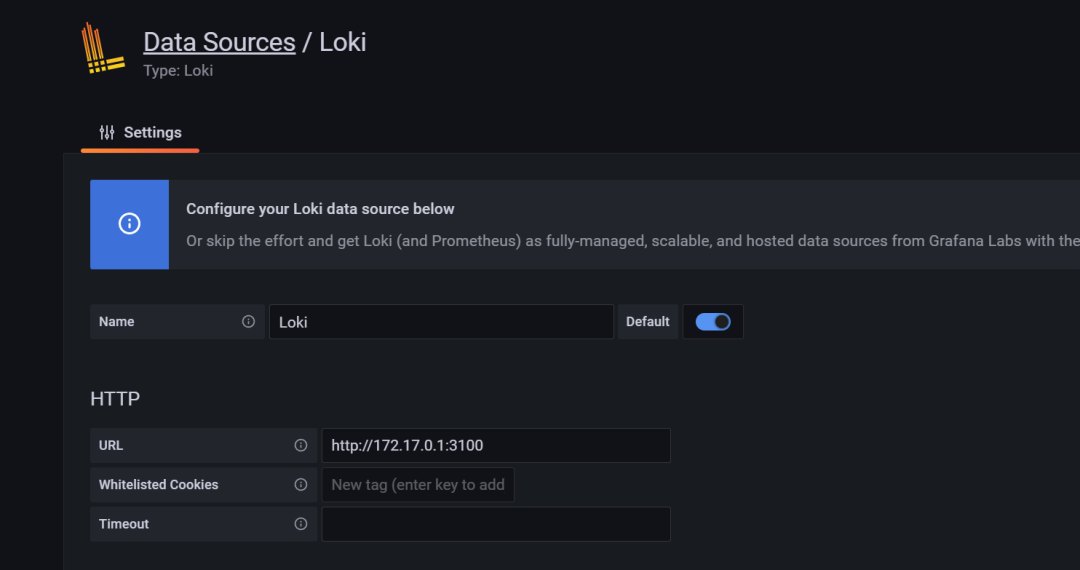

我们直接添加数据源 loki

颜值高的 Nginx 日志查看分析的解决方案

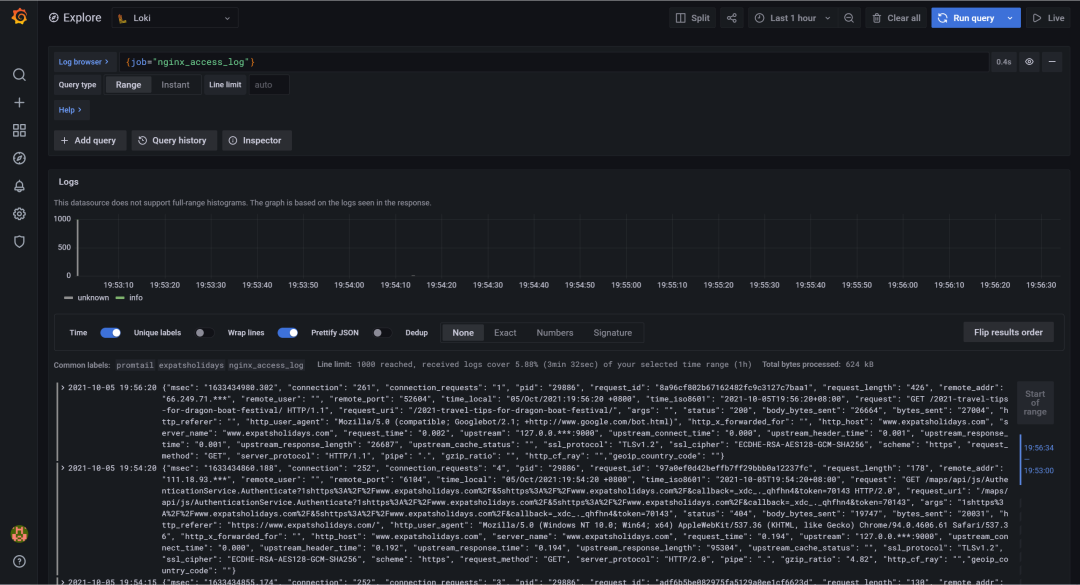

先通过 explore 查询,日志是否存入 loki

颜值高的 Nginx 日志查看分析的解决方案

可以看到,日志已经存入 loki

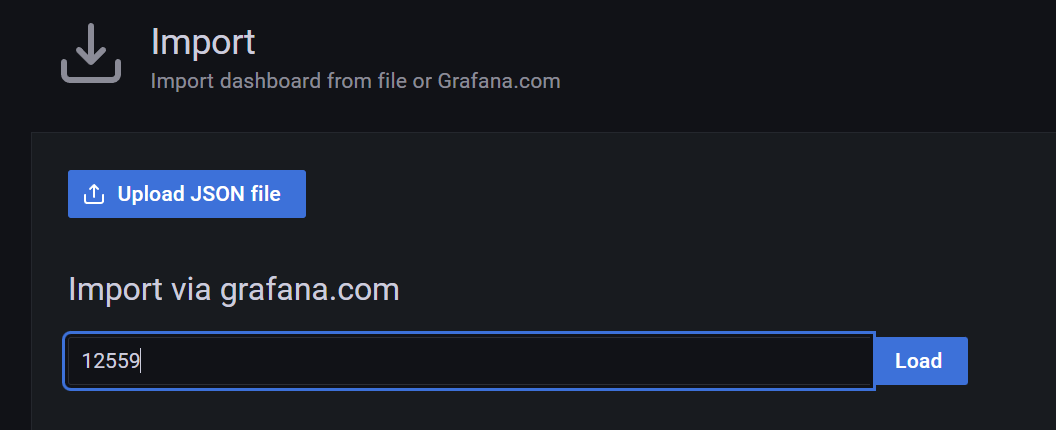

接着添加 Dashboard,通过 ID 导入

颜值高的 Nginx 日志查看分析的解决方案

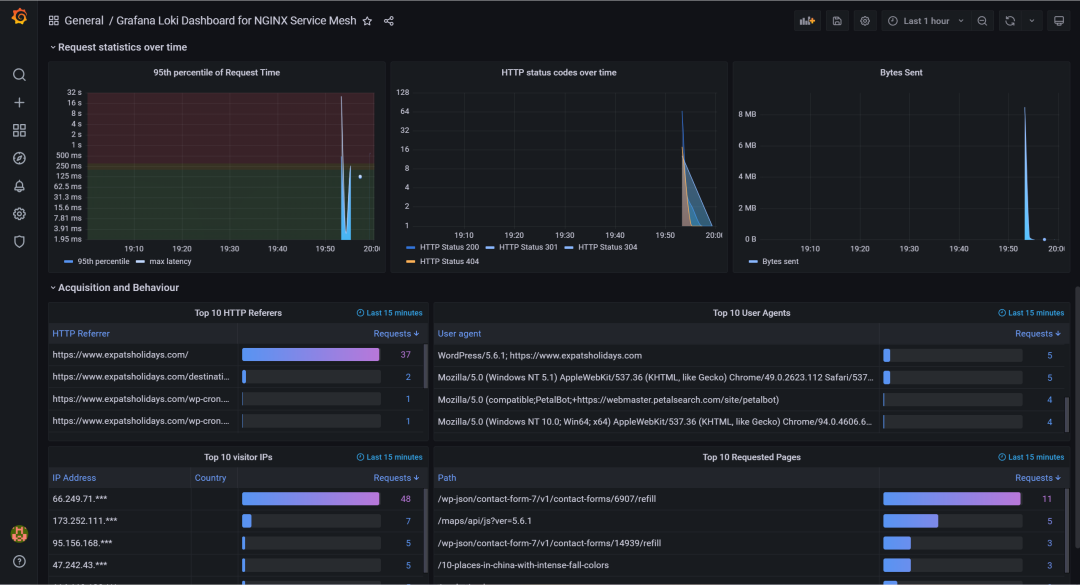

导入如下

颜值高的 Nginx 日志查看分析的解决方案

颜值高的 Nginx 日志查看分析的解决方案

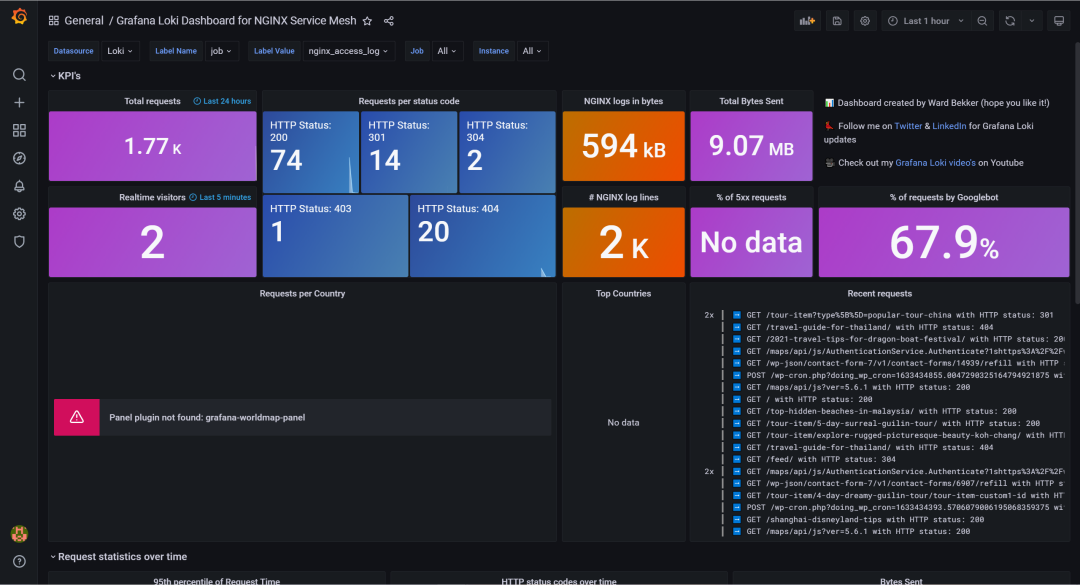

可以看到,这里地图没展示,缺少`grafana-worldmap-panel`插件,我们装一下,通过命令行


grafana-cli plugins install grafana-worldmap-panel

安装完成后,重启 grafana,重新查看 dashboard

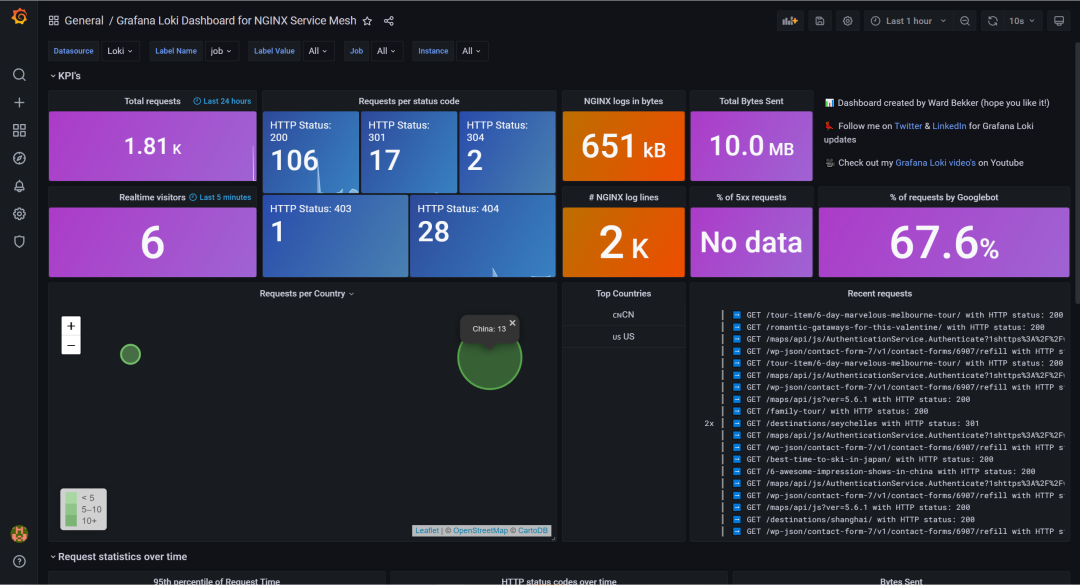

颜值高的 Nginx 日志查看分析的解决方案

地图可以展示,这里因为地图的地址是国外的地址,所以地图的图片无法加载,可以通过反代的方式解决

ok,今天内容就这些,通过简单快速的方式,为客户呈现网站的详细访问情况,Loki+Grafana 是绝佳的组合。
