简介
基于 abp.net 框架的缓存模块,如何使用 Redis 集群来实现案例呢?
项目结构
类型:Console
依赖类库:Abp.RedisCache、Abp
主要代码
1.程序模块
根据 abp 编码规则,定义 console 的模块
/// <summary>
/// reids 集群测试 module
/// </summary>
[DependsOn(typeof(AbpRedisCacheModule))]
public class ReidsSentinelCacheModule : AbpModule
{
public override void PreInitialize()
{
this.Configuration.Caching.ConfigureAll(cache =>
{
//cache.DefaultSlidingExpireTime = TimeSpan.FromMinutes(1);// 多久未访问
// 设置 1min 缓存失效
cache.DefaultAbsoluteExpireTime = TimeSpan.FromMinutes(1);// 定时销毁
});
this.Configuration.Caching.UseRedis();
}
}
2.初始化 ABP
/// <summary>
/// 初始化 abp
/// </summary>
private static void InitAbp()
{
var bootstrapper = AbpBootstrapper.Create<ReidsSentinelCacheModule>();
bootstrapper.Initialize();
_cacheManager = IocManager.Instance.Resolve<ICacheManager>();
}
3.可配置 console 标题
private static void InitConsole()
{
var title= ConfigurationManager.AppSettings["title"];
Console.Title = title.IsNullOrEmpty() ? "master" : title;
}
4.取值
/// <summary>
/// 获取缓存值
/// </summary>
/// <returns>随机值</returns>
public static int GetCacheItem()
{
var cache = _cacheManager.GetCache("RANDOMCACHE");
return int.Parse((cache.Get(
"RandomValue",
() =>
{
Console.WriteLine("非缓存数据");
Random rd = new Random();
return rd.Next(1, 100000);
})).ToString());
}
5.main 方法
static void Main(string[] args)
{
InitConsole();
InitAbp();
var randomValue = GetCacheItem();
Console.WriteLine("第一次取值:{0}",randomValue);
Stopwatch watch = new Stopwatch();
watch.Start();
while (true)
{
Thread.Sleep(5000); // 等待 500ms
// 每 500 ms 取一次
randomValue = GetCacheItem();
Console.WriteLine("{1}取值:{0}", randomValue, DateTime.Now.ToString("HH:mm:ss.fff"));
if (watch.ElapsedMilliseconds > 10*60 * 1000)
{
// 运行 1min
break;
}
}
watch.Stop();
Console.ReadKey(true);
}
程序运行 10min,每 5s 取一次数据,缓存设定定时 1min 失效!
6.配置文件
<?xml version="1.0" encoding="utf-8" ?>
<configuration>
<configSections>
</configSections>
<appSettings>
<!--区分程序-->
<add key="title" value="" />
<!--指定 redis 数据库-->
<add key="Abp.Redis.Cache.DatabaseId" value="-1" />
</appSettings>
<connectionStrings>
<!--设置 redis 数据库连接-->
<add name="Abp.Redis.Cache" connectionString="localhost:6379,localhost:6380,localhost:6381"/>
</connectionStrings>
<startup>
<supportedRuntime version="v4.0" sku=".NETFramework,Version=v4.5.2" />
</startup>
</configuration>
运行结果
现在我们运行三个程序,标题分别为 master、slavo1、slavo2,将生产的 debug 文件夹复制三个,分别重命名

修改三个文件夹配置文件: <add key="title" value="" />
来指定 console 显示的标题。
期望结果

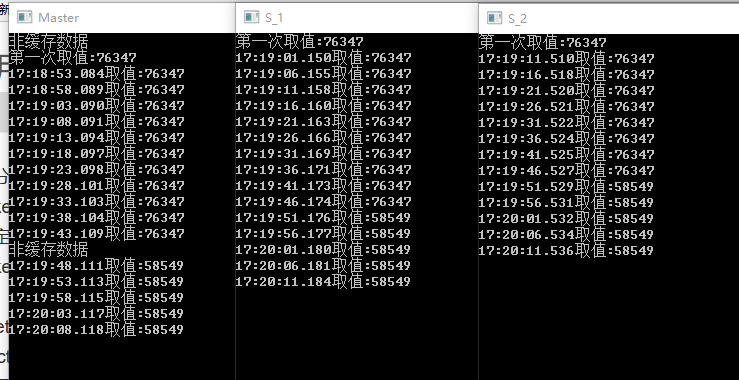

分别运行 三个程序,期望得到的结果是:master、s1、s2 获取到的缓存数据都是一样的,并且如果 三个程序,有一个改变了缓存,其他程序也能正确获取到缓存值,运行结果如下:

我们发现 master 第一次产生的数据:76347,而其他程序启动之后,没有显示非缓存数据,而是直接取缓存数据 76347,得到预期运行结果。
master 关闭,

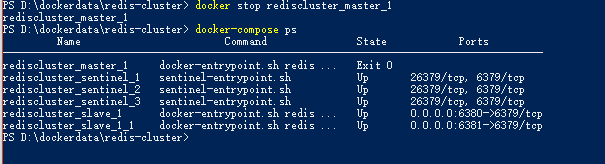

接下来,我们 stop master

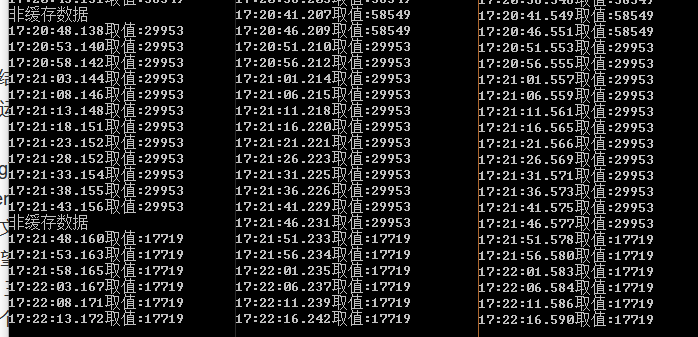

在来看程序运行结果

程序正常运行
总结
通过该实例,我们发现,可以正常使用 redis 集群缓存,并且学习了 abp 的基本用法和 abp.rediscache 的用法。
为什么要用三个同样的程序跑呢?为了以后 web 做负载均衡的时候,能够确保每个程序都会正确的读取到缓存数据,经过实验证明,方案是可行的。
来源:https://www.jianshu.com/p/20d9dfc01747
示例源代码:https://git.oschina.net/zhaord/redis_sentinel_demo.git
